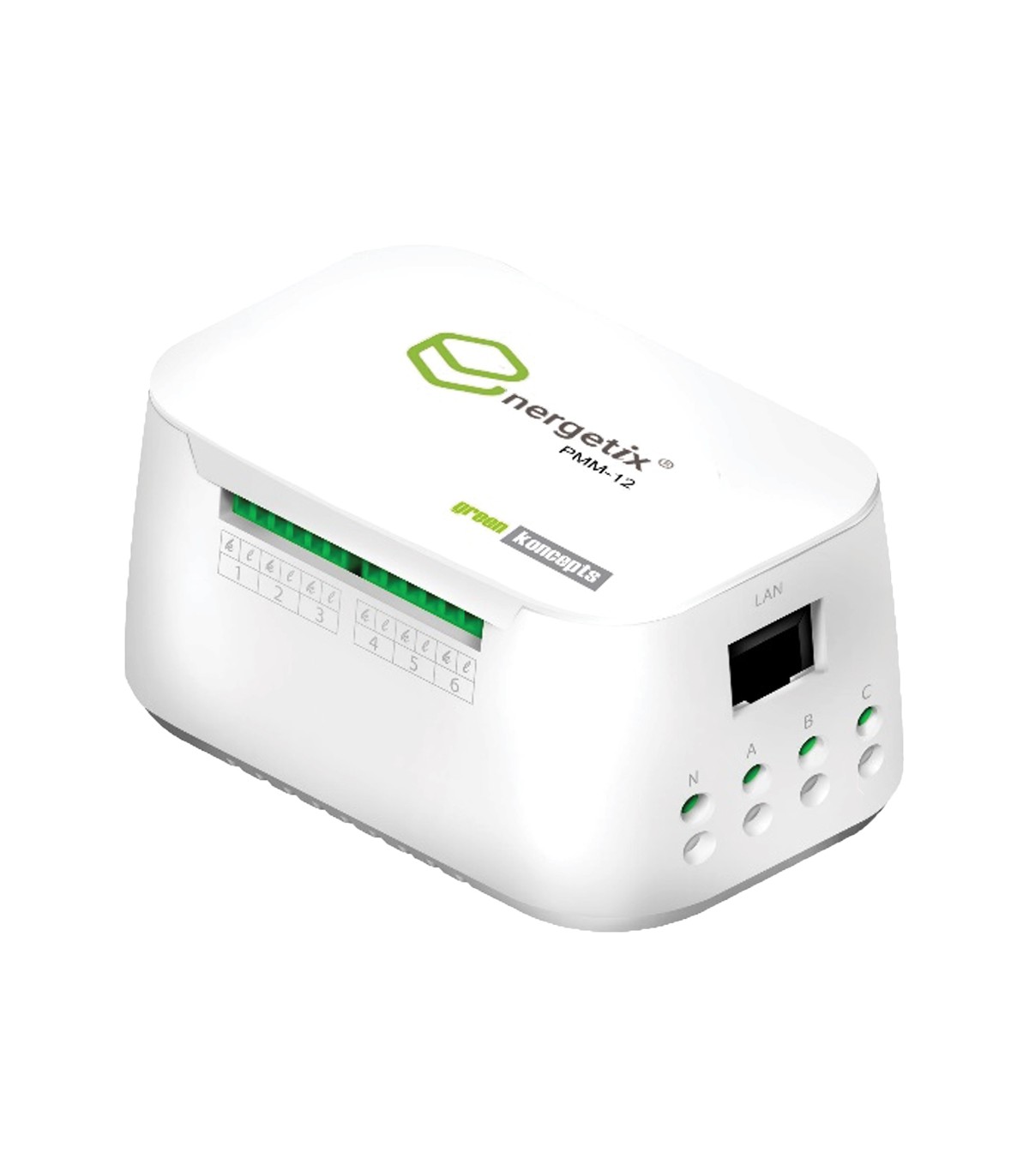

Power Metering Module PMM-12
Reference:
PM-PMM-12
The PM-PMM-12 is a high-resolution Class 1, 3 Phase Power Metering Module. With a wide measurement range from 0.01A – 10000A and Class 1 accuracy, the PMM-12 can be used in metering applications for small 3 phase loads to LT incoming mains.
The PM-PMM-12 includes 4 elements in a highly compact format and these 4 elements may be used in single phase configuration providing up to 12 single phase meters.
When used with the Green Koncepts split core CTs and Rogowski Coils, the PMM-12 series of metering equipment provides unparalleled flexibility for installations where power cannot be interrupted.
Lead Time: 4-6 Weeks
Applications
- High accuracy and high-resolution applications
- LT incoming mains metering
- Installations where power cannot be interrupted
- Metering in tight circuit boxes and switch rooms
- Alert & event management
- Branch circuit monitoring for Data Centre
- Submetering
PM-PMM-12
Data sheet
- Operating Frequency
- 50/60 Hz
- Operating Temperature
- -20°C to + 50°C
- Weight
- 200g
- MTBF
- 35K – 50K hours
- Operating Voltage
- 100-240V AC 0.05A
- Current Range
- 0.01 – 1000A
- Accuracy
- Class 1 - IEC62053-21
- Resolution
- 0.1A/0.1V/1W
- Communications
- LAN & Wi-Fi
- Measurement Output
- See below
- Type
- DIN Rail Mounted
- CT
- 50A – 10000A
