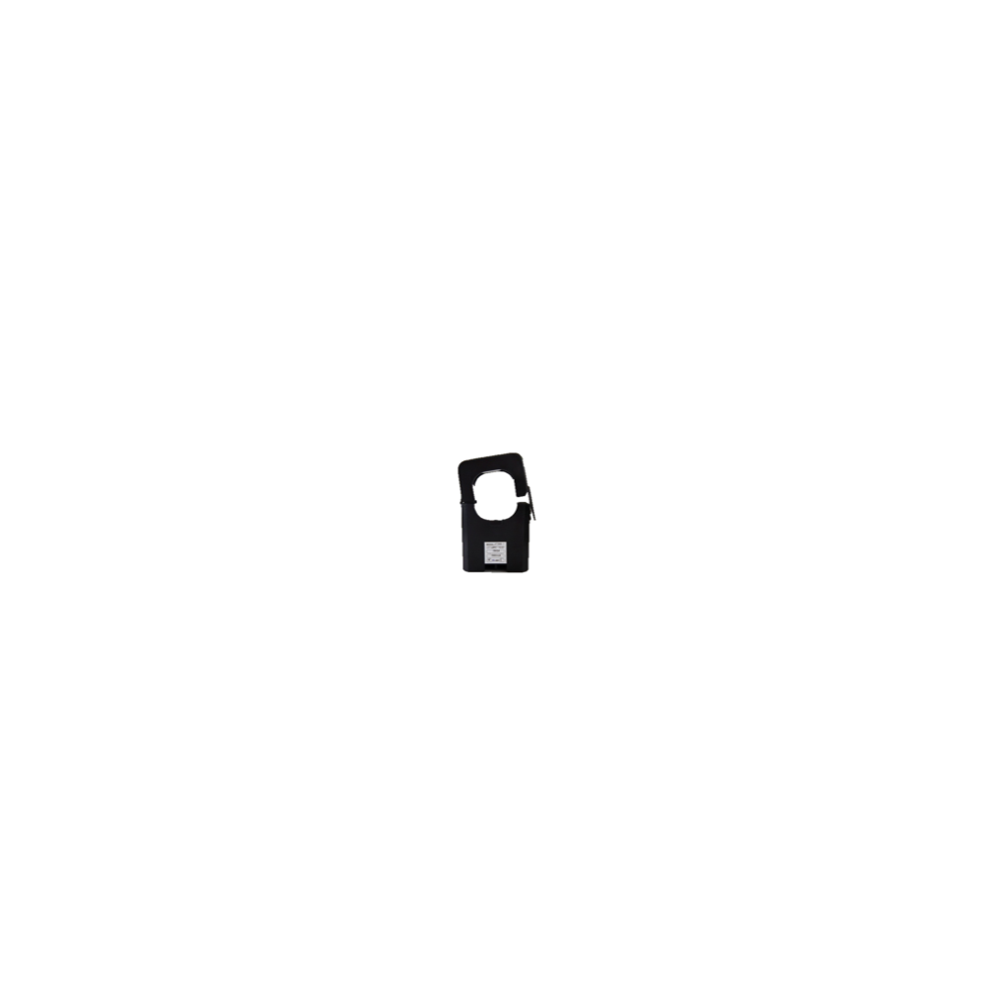

Split Core Current Transformer 200A
Reference:
PM-SCT-24 200A

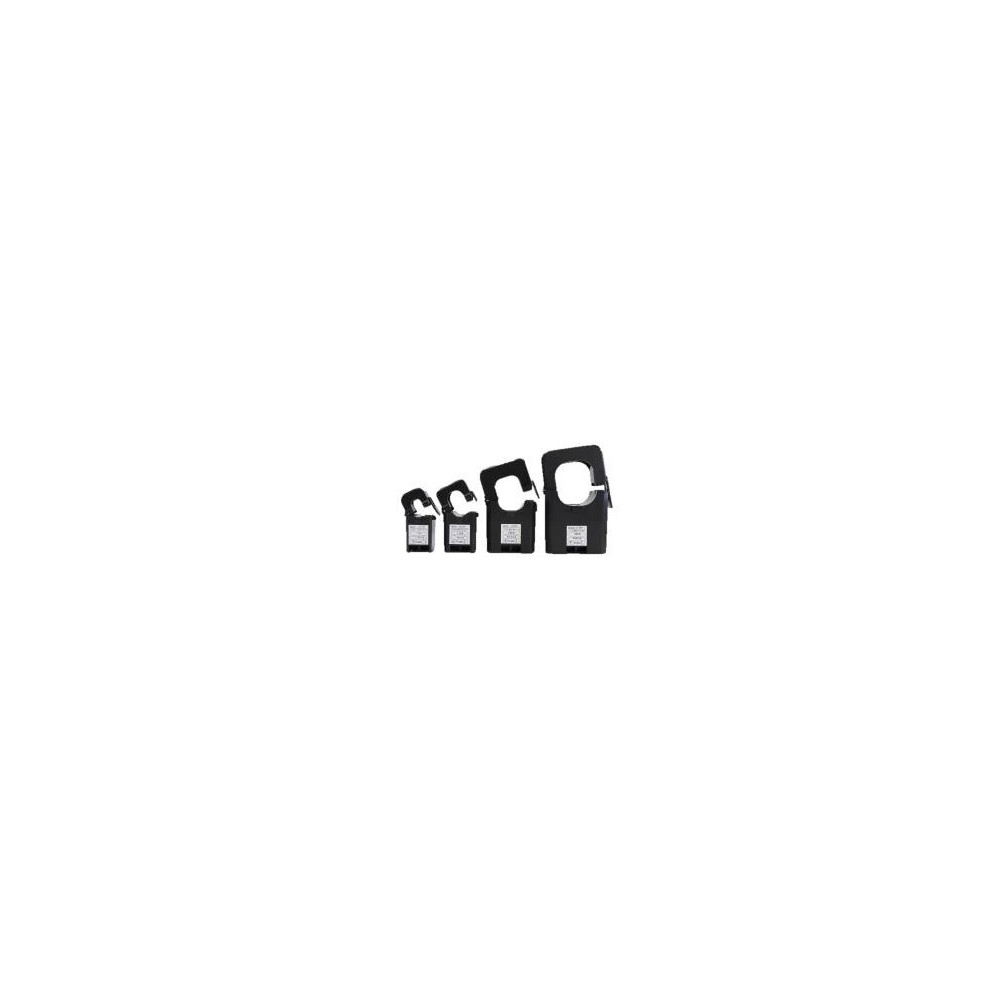

Split Core Current Transformers series is a highly accurate and versatile range of current transformers that facilitate measurements from 0.01A to 400A. These current transformers are internally shunted and inherently safe compared to other commercially available current transformers.
Lead Time: 2-4 Weeks
PM-SCT-24 200A
Data sheet
- Operating Frequency
- 50/60 Hz
- Operating Temperature
- -20°C to + 50°C
- Dimensions
- 45.0 x 74.5 x 34.0 mm
- Current Range
- 0.01 - 120A
- Window Size
- 16mm
- Output Voltage
- 333 mV
- Max Continuous Current
- 150A/200A
- Nominal Phase Angle Error
- +1.0 +/- 1desgree
- Nominal Linearity Error
- -1 +/- 1%
- Insulation Resistance
- DC 500V/ 100 MΩ
- Dielectric Strength
- AC 2500V / 1 min
- Weight
- 75g
